Liquibox Intasept®
Liquibox Intasept: Aseptic bag-in-box filling systems
The Liquibox Intasept series features semi-automatic filling equipment for a wide range of high and low-acid products. Unlike other aseptic filling machines in the market, the unique patented Intasept aseptic filling technology offers the security of heat-sealed closure both before and after filling. The Intasept system is designed to fill 1.5-20L (0.5-5G) flexible bags for bag-in-box as well as bulk 210-1500L (55-395G) bags for drums, bins and intermediate bulk containers (IBC).
Intasept teknolojisi
Sistem iki kısımdan oluşmaktadır:
- Çift membran: yuvarlak veya dikdörtgen şekillerde mevcut 16 veya 32 mm'lik rakorlar, doldurma öncesinde ve sonrasında ısıyla yapıştırılmış kapak temin eder. Intasept sistemi, daha etkili ve daha hızlı bir yeniden yapıştırma için patentli bir enerji besleme teknolojisi kullanır.
- Filler: ensures the sterile transfer for both low and high acid products without the use of chemical agents.
Intasept dolum makinelerinin avantajları:
- Kullanıcı arayüzü kolaydır
- Sadece buhar, basınçlı hava ve tek fazlı güçle kurulabilen kolay sistemdir
- Kapalı transfer sistemi, dolum sürecinin tüm aşamalarında ortam havasını dışarıda tuttuğundan özel bir fabrika ortamı gerektirmez.
- Quick and simple bag size changes
- Yerinde temizlenme/yerinde buharlanma (CIP/SIP) özellikleri
- Kompakt ebat
Intasept dolum makineleri serimiz

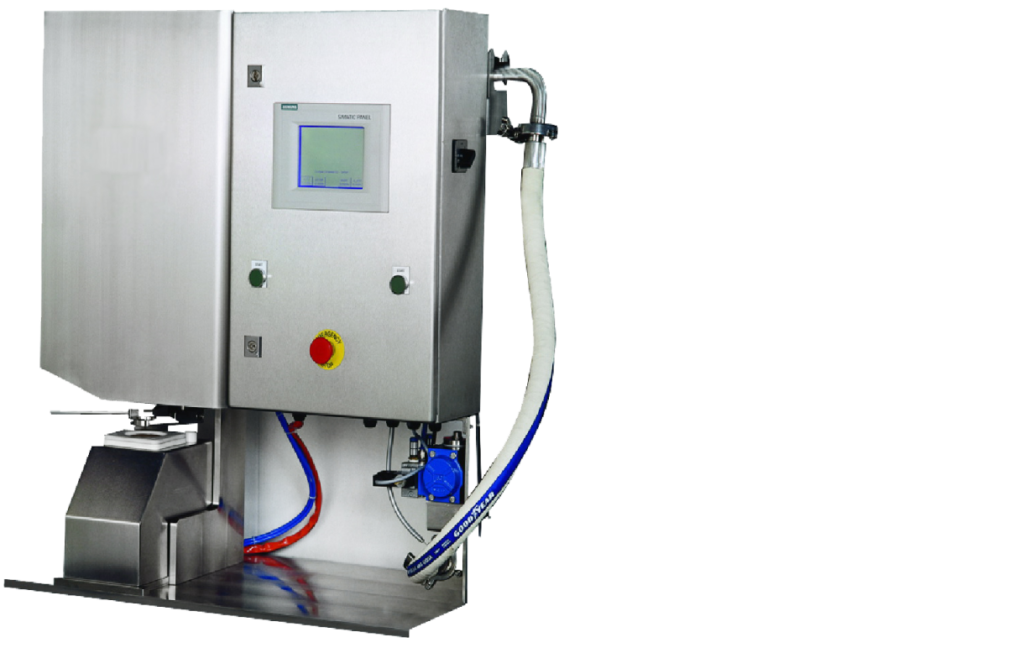

S-Series Intasept: single head or dual head semi-automatic filler
The Liquibox S-Series is an affordable and user-friendly bag-in-box filler that empowers businesses to thrive at any stage of development. The Intasept S-Series is designed to work with 16 and 32mm glands. Tap and piecer fittings are available for the 16mm gland.
Doldurma hızı*
Volume L (G) | Single head BPM | Dual head BPM |
4L (1G) | 4 | 7 |
10L (2.5G) | 4 | 7 |
20L (5G) | 3 | 6 |

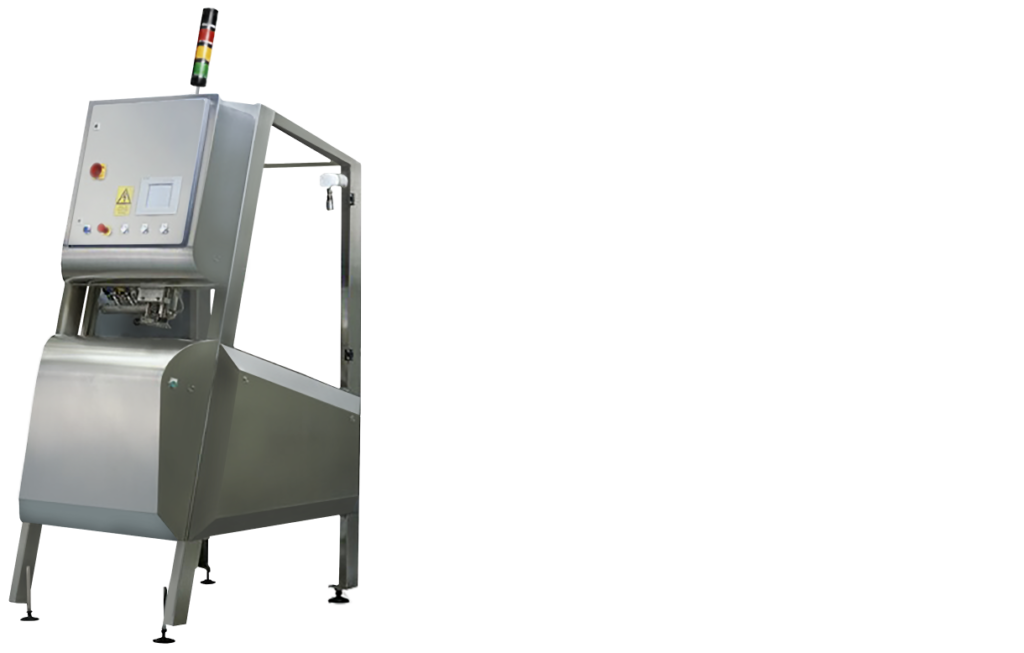

Intasept 2800: single head bulk filler
A bulk filler designed to fill bags ranging from 5 to 1500L (1.5-395G). Ideal for filling fresh, stable and viscous liquid products.
Doldurma hızı*
Volume L (G) | Saat başına torba |
5L (1.5G) | 140 |
10L (2.5G) | 140 |
20L (5G) | 140 |
210L (55G) | 50 |
1000L (265G) | 15 |
* Dolum hızı değerleri, müşterilerin çeşitli tesislerinde kaydedilen ortalama değerlerdir. Fiili hız, operatörün becerisine, ürün tedarik hızına ve torba boyutuna bağlıdır.
Endüstriler
Intasept aseptik doldurma teknolojisi, hem yüksek hem de düşük asitli sıvı ve parçacıklı ürünler için uygundur:
İçecekler
Dairy, juices, coffee & tea, water, among others.
Gıdalar
Ice cream mix, coconut milk, creams, custards, soups, broths, sauces, fruit & vegetables purees, and pulp with particles up to 10mm
Bileşim maddeleri
Omega 3, vitaminler, enzimler
Biyomedikal
Klinik besleme ve hücre kültürü ortamı
Haydi
bağlanalım
From greater sustainability to higher performance, we’re here to deliver what your business needs most.
Filler sales and support: + 1-888-472-3400
